A lifting electromagnet is equipment that uses electromagnetic principles to hoist magnetic materials such as steel and iron. Its working principle is based on electromagnetic induction, where a magnetic field is generated when electric current flows through a coil. When current passes through the coil of a lifting electromagnet, a strong magnetic field is produced inside it. This magnetic field penetrates the magnetic object being lifted, rearranging the magnetic domains within the object. As a result, the object becomes magnetized and attractive force is generated.

The magnetic field strength of a lifting electromagnet is proportional to the magnitude of the current passing through the coil. The higher the current, the stronger the magnetic field and the greater the attractive force produced. Meanwhile, the core material of the lifting electromagnet, as well as the number of coil turns and winding method, also affect the intensity and distribution of the magnetic field.

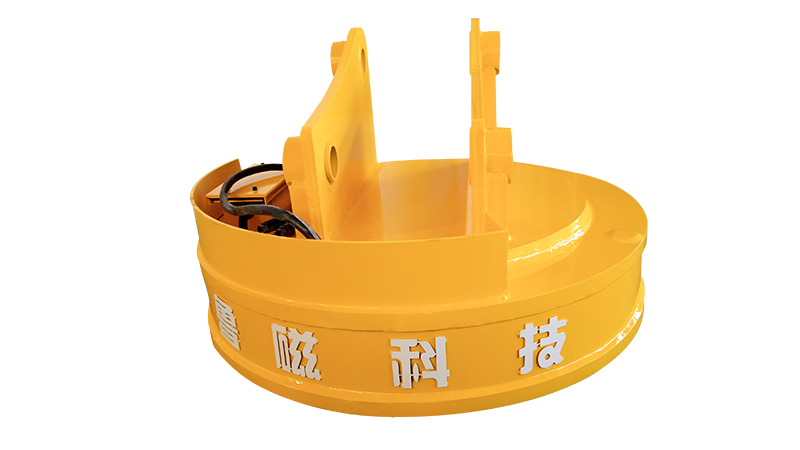

In practical applications, lifting electromagnets are usually designed with specific shapes and structures to achieve reliable hoisting of magnetic objects. For example, common rectangular or circular lifting electromagnets feature optimally designed pole faces to ensure uniform adsorption of objects during lifting and deliver sufficient magnetic holding force.

In addition, matching power supplies and control systems are required to manage the working status of lifting electromagnets. By controlling the on-off state and magnitude of current, adsorption, release and magnetic force adjustment during lifting operations can be realized.

When adsorbing an object, the magnetic force of the lifting electromagnet overcomes the object’s gravity and friction, firmly holding it against the pole face. To release the object, cut off or reduce the current so that the magnetic field disappears or weakens. The adsorbed object will then lose magnetic attraction and drop naturally.

In summary, lifting electromagnets generate powerful magnetic fields via electromagnetic induction to attract magnetic objects and complete hoisting tasks. Their operating principle involves multidisciplinary knowledge including electromagnetism, material science and control engineering.
