What is the working principle of the magnetic mold plate quick mold change system for injection molding machines? It is a modern technology designed for fast mold replacement on injection molding machines. Replacing traditional bolts and clamps with magnetic mold plates, the system greatly cuts mold change time and improves production efficiency.

Below are its basic working principle and main components:

Principles

1. Magnetic clamping: The magnetic mold plate generates a magnetic field via electro-permanent magnets or permanent magnetic materials to securely hold the mold onto the platen of the injection molding machine.

2. Quick mold change: The magnetic field can be activated or deactivated to clamp or release the mold within seconds, drastically shortening the time required by conventional methods.

3. Safety design: The system is normally equipped with multiple safety features including displacement sensors, temperature sensors and current monitoring to guarantee safe mold change operations.

Main Components

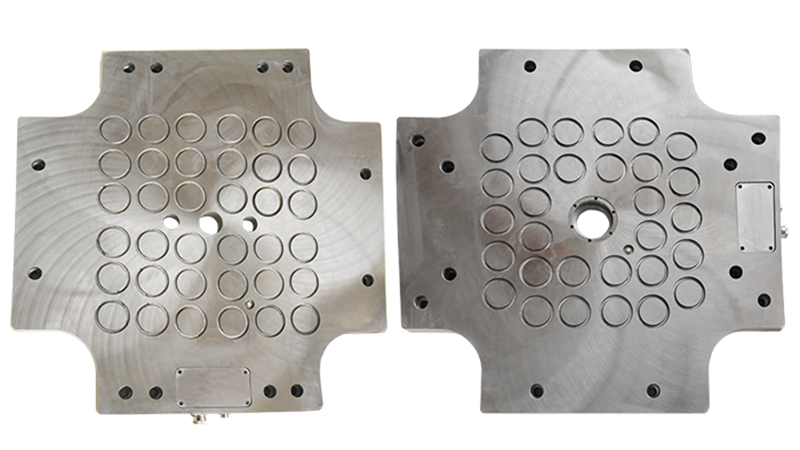

1. Magnetic mold plate: The core part of the system, consisting of a moving platen and a fixed platen. It generates powerful magnetic force from electro-permanent or permanent magnets to lock the mold.

2. Electric control system: It controls the switch of the magnetic field, monitors and feeds back parameters such as temperature and current to maintain stable system operation.

3. Sensors: They detect the mold position and clamping status to ensure accuracy and safety during mold changing.

4. Operation panel: The human-machine interface for operating and monitoring the whole mold change process. It is generally equipped with start/stop buttons, status indicators and various alarm functions.

With this innovative system, the injection molding industry can achieve remarkable productivity gains while lowering operational risks and labor costs. It serves as an important technical solution for modern manufacturers to boost competitiveness.
